Many industrial processes require precise temperature measurement.
For this, ABB offers one of the most extensive product portfolios.
The reliable devices and solutions meet your requirements and they
have proven themselves in many instances of use in various industries.
ABB has extensive experience and supports you in the selection of
tailor-made solutions.

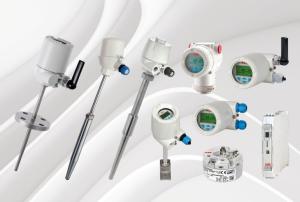

Field-Mount Temperature Transmitter TTF300 For ABB
Single and dual chamber for the most
demanding applications
Product types TTF300 (N) TTD300 (N)
Communication protocol HART 7, PA, FF, (WirelessHART) HART 7
Device type Single Chamber Field Mount Dual Chamber Field Mount
Sensor Inputs Dual Sensor Dual Sensor
Sensor connection • Pt100, two-wire, three-wire, four-wire, thermocouple with internal reference junction
• 2x Pt100 two-wire and three-wire, 2x thermocouple or 1x Pt100 two-wire, three-wire, four-wire
and 1x thermocouple
Features • Hart variable mapping
• "Easy setup" - ABB guided device and sensor commissioning
Diagnosis active alerts and mapping
• NAMUR status selection
• Event and configuration Monitor
• EMC Filter
• Backup/sensor Redundancy (TTH300)
• Specific Linearization _ calender van dusen, 32 pt value pair table
• Non-invasive Capable (TTH300)
• Write protection NE 131
• Current pulse for output maintenance
- Supply voltage monitoring
- Wire break and corrosion monitoring
• Sensor error adjustment
• Electrical isolation
•(N) NINVA - Non-invasive capable
Indicator Transmitter-controlled, graphical 2 line
(alphanumeric) LCD indicator for process value, sensor value
and actual value
Configuration EDD, DTM, FDI, EDD, DTM
Functional Safety SIL2/3 with unique SIL CHECK FUNCTION
Surge Protection 1KV standard 1 kV standard, 4kV optional internal surge protection
Approvals IECEx, ATEX, FM, Kosha, NEPSI, PESO IECEx, ATEX, cFMus, PESO, others in progress
